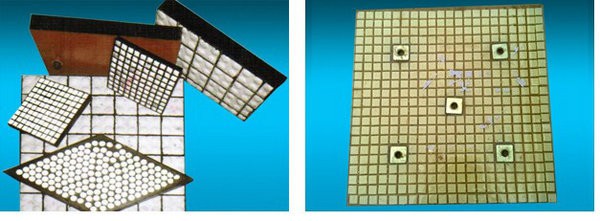

The impact-resistant wear-resistant ceramic rubber composite lining board is a mosaic ceramic embedded in special rubber through rubber vulcanization technology to form a square ceramic rubber composite, which is adhered by welding (triple series) or high-strength adhesive (two In one way) It is fixed on the protective surface of the equipment to form a strong and cushioning wear-resistant layer, which greatly expands the use of alumina ceramics. The products are widely used in coal transportation, ash discharge systems of thermal power plants and materials, batching silos, hoppers and other equipment in the metallurgical iron and steel industry, which effectively solves the problem of low service life of the batching conveying system due to the large material drop and strong impact At the same time, the ceramic rubber composite liner can be twisted and cut, which is suitable for the installation of various special-shaped equipment.
specification |
length |
width |
thickness |
Three in one series |
20-1000 |
20-1000 |
10-75 |
Two in one series |
20-1000 |
20-1000 |
10-75 |
